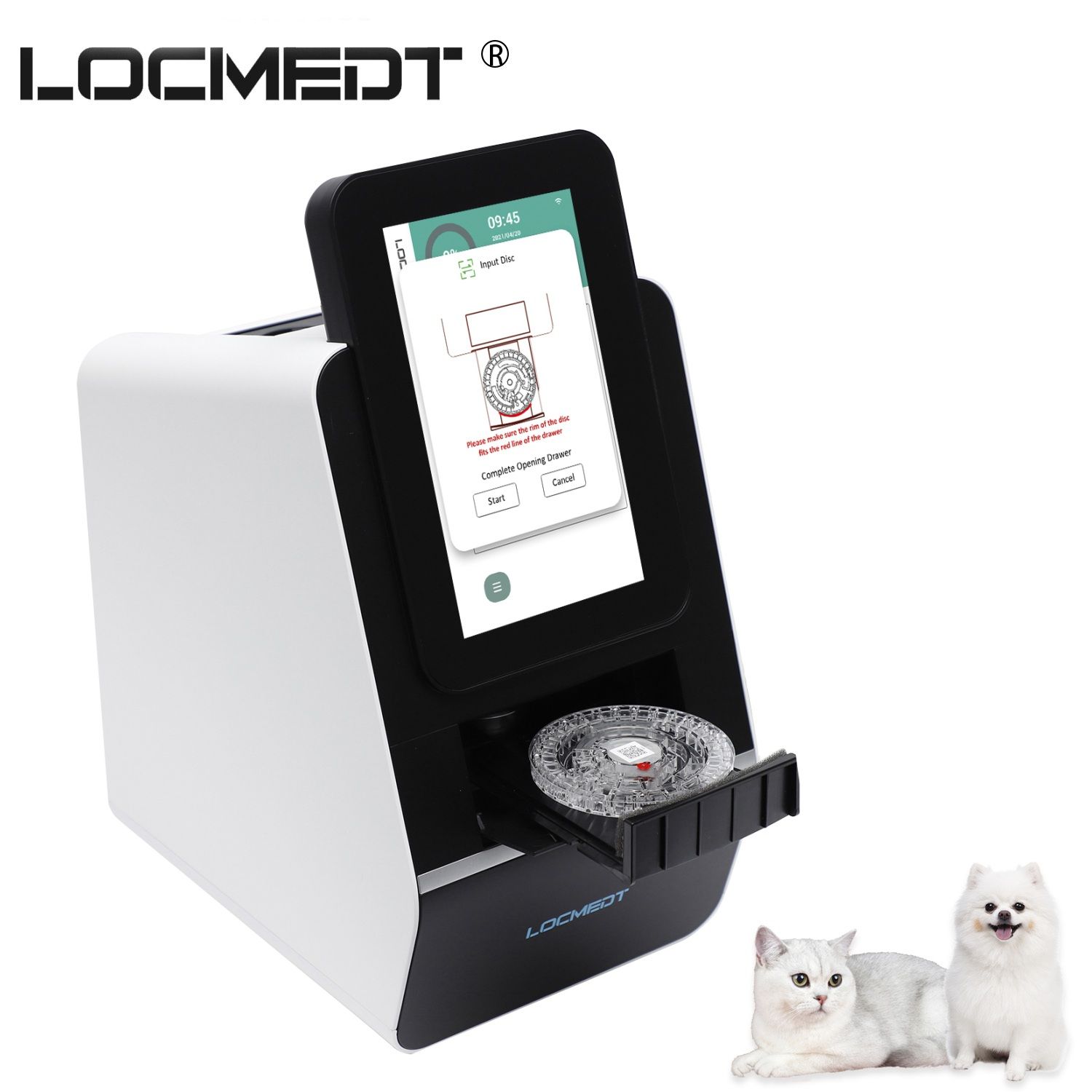

Noahcali-100 is a portable clinical biochemistry analyzer for veterinary use, providing quantitative in vitro determinations of clinical chemistry analytes in animal whole blood, plasma or serum.
It covers the analysis of biochemistry, blood gas and electrolyte, testing up to more than 30 parameters within 12 minutes.
Features of Noahcali-100 Automatic Veterinary Biochemistry Analyzer
Small Size, More Compact
The dimension is 17*26*35cm, and weight is 4.5kg. Easy to carry.
Easy to Operate
Pre-installed diluent and lyophilized reagent beads, only 3 steps to get the result: add the sample to disc, insert the disc, read results.
Accurate and Fast Result
Built-in Intelligent Real time Quality Control(IQC)system monitors the entire process to ensure the optical disc performance and reaction stability. Get results within in 12 minutes.
Extensive Test Menu
Including biochemistry, electrolyte and blood gas test, deliver up to 22 results in single run and more than 30 parameters in total across 8 panels.
Only need 90-120μl (about 3 drops)whole blood, serum or plasma.
High quality parts used, no consumable accessories inside. The xenon lamps as light source with decades of lifespan
How to Use Noahcali-100 Automatic Veterinary Biochemistry Analyzer
Add 100μL Sample
Insert the Disc
Read the Results
LOCMEDT Veterinary Biochemistry Analyzer
Basic Information of Noahcali-100 Automatic Veterinary Biochemistry Analyzer
|Sample Type||lithium-heparinized whole blood, lithium-heparinized plasma or serum||Display||7 inch capacitive touch screen Multi-language|
|Sample Volume||90-120 µL||Storage||Max 500,000 results|
|Testing Time||8-12 mins/sample||Printer||Built-in thermal printer|
|Working Condition||Temperature:10-30°C Humidity: 40%-85%||Data Transmission||WIFI, LIS|
|QC & Calibrate||Automatic and Real-time||Size||256mm(L)*172mm(W)*350mm(H)|
|Supply||AC110-240V, 50-60HZ||Power Rating||120W|
Application of Noahcali-100 Automatic Veterinary Biochemistry Analyzer
Q1: What kind of tests does the Noahcali-100 veterinary chemistry analyzer can do?
Noahcali-100 can do the vet blood biochemistry, blood gas,electrolyte analysis.So the users do not need separate instrument for electrolytes or blood gas.
Q2: How many kinds of panels can be used in Noahcali-100 Animal blood test analyzer?
Noahcali-100 blood test analyzer only accept LOCMEDT reagent panels, see details at Disposable Reagent Disc.
Q3: Does Noahcali-100 vet use chemistry analyzer require calibration?
No, the Noahcali-100 analyzer reagent panels are factory-calibrated. The calibration information encoded in the QR code on the center of the rotor. When inserting the rotor, the analyzer can read it automatically.
Q4: What maintenance does Noahcali-100 blood test analyzer require?
High quality parts used, no consumable accessories inside.The xenon lamps as light source with decades of lifespan. It only needs some cleaning, see details in operator’s manual.
Q5: What types of samples can be used with Noahcali-100 Clinical Chemistry Analyzer?
The sample should be lithium-heparin whole blood, lithium-heparin plasma, or serum. Do not use EDTA as an anti-coagulant.
Q6: What is the Noahcali-100 Veterinary Biochemistry Analyzer sample volume required?
Usually 90-120μL for a test（about 3 drops), but for Critical Care Panel 13 only accept 120μL plasma.
Q7: What is the shelf life of the Noahcali-100 Biochemistry analyzer reagent discs?
The shelf life of the disc can be 18 months and the discs should be stored refrigerated at 2-8°C
Q8: Can expired disc be used in the Noahcali-100 Vet Blood Chemistry Analyzer?
No, the analyzer will cancel the run and display an Error Code message.
Q9: Does the disc require warm-up time before using?
No, the users can use the disc directly from the refrigerator
Q10: How long can the Noahcali-100 biochemistry analyzer reagent disc be used after removing from the foil pouch?
After opening the pouch, the discs should be used in 20 minutes.
Noahcali-100 Vet Use Electrolyte and Blood Gas Analyzer provides biochemistry, blood gas, electrolytes parameters test results for animal health diagnosis. With a compact system, portable size and lab level test results, it is widely used in animal hospital, clinic and laboratories.
Noahcali-100 is an automatic biochemistry analyzer used for animal blood chemistry tests that deliver precise, reliable and fast result within 12 minutes, helping the user to quickly obtain complete and accurate Chemistry values, reducing the patient waiting time and improving customer satisfaction.
The Noahcali-100 is a micro-fluidic based benchtop blood chemistry test analyzer. The device combines the chemistry, electrolyte and blood gas test together, delivering reliable and accurate results from just three drops of whole blood, serum, or plasma.
